Optimization and gradient descent method¶

from IPython.display import IFrame

IFrame(src="https://cdnapisec.kaltura.com/p/2356971/sp/235697100/embedIframeJs/uiconf_id/41416911/partner_id/2356971?iframeembed=true&playerId=kaltura_player&entry_id=1_wota11ay&flashvars[streamerType]=auto&amp;flashvars[localizationCode]=en&amp;flashvars[leadWithHTML5]=true&amp;flashvars[sideBarContainer.plugin]=true&amp;flashvars[sideBarContainer.position]=left&amp;flashvars[sideBarContainer.clickToClose]=true&amp;flashvars[chapters.plugin]=true&amp;flashvars[chapters.layout]=vertical&amp;flashvars[chapters.thumbnailRotator]=false&amp;flashvars[streamSelector.plugin]=true&amp;flashvars[EmbedPlayer.SpinnerTarget]=videoHolder&amp;flashvars[dualScreen.plugin]=true&amp;flashvars[hotspots.plugin]=1&amp;flashvars[Kaltura.addCrossoriginToIframe]=true&amp;&wid=1_o38cisoq",width='800', height='500')

-->

Please access the video via one of the following two ways

1. Google Drive: https://drive.google.com/drive/folders/1iZaAeW-ZBodtHG9FR4vh7-aSEZtI7RxS?usp=sharing

2. Baidu Netdisk: https://pan.baidu.com/s/1K6e_ZcvdmXjQCLop-o9n2A?pwd=vkp1 Code: vkp1

Download the lecture notes here: Notes ¶

Gradient descent method¶

For simplicity, let us just consider a general optimization problem

(17)¶\[ \label{optmodel} \min_{x\in \mathbb{R}^n } f(x). \]

A general approach: line search method¶

Given any initial guess $x_1$, the line search method uses the following algorithm

\[ \eta_t= argmin_{\eta\in \mathbb{R}^1} f(x_t - \eta p_t)\qquad \mbox{(1D minimization problem)} \]

to produce $\{ x_{t}\}_{t=1}^{\infty}$

(18)¶\[ x_{t+1} = x_{t} - \eta_t p_t. \]

Here $\eta_t$ is called the step size in optimization and also learning rate in machine learn ing, $p_t$ is called the descent direction, which is the critical component of this algorithm. And $x_t$ tends to

\[ x^*= argmin_{x\in \mathbb{R}^n} f(x) \iff f(x^*)=\min_{x\in \mathbb{R}^n} f(x) \]

as $t$ tends to infinity. There is a series of optimization algorithms which follow the above form just using different choices of $p_t$.

Then, the next natural question is what a good choice of $p_t$ is? We have the following theorem to show why gradient direction is a good choice for $p_t$.

lemma

Given $x \in \mathbb{R}^n$, if $\nabla f(x)\neq 0$, the fast descent direction of $f$ at $x$ is the negative gradient direction, namely

\[ -\frac{\nabla f(x)}{\|\nabla f(x)\|} = \mathop{\arg\min}_{ p \in \mathbb{R}^n, \|p\|=1} \left. \frac{\partial f(x + \eta p)}{\partial \eta} \right|_{\eta=0}. \]

It means that $f(x)$ decreases most rapidly along the negative gradient direction.

proof

Proof. Let $p$ be a direction in $\mathbb{R}^{n},\|p\|=1$. Consider the local decrease of the function $f(\cdot)$ along direction $p$

\[ \Delta(p)=\lim _{\eta \downarrow 0} \frac{1}{\eta}\left(f(x+\eta p)-f(x)\right)=\left. \frac{\partial f(x + \eta p)}{\partial \eta} \right|_{\eta=0}. \]

Note that

\[ \begin{split} \left. \frac{\partial f(x + \eta p)}{\partial \eta} \right|_{\eta=0}=\sum_{i=1}^n\left. \frac{\partial f}{\partial x_i}(x + \eta p)p_i \right|_{\eta=0} =(\nabla f, p), \end{split} \]

which means that

\[ f(x+\eta p)-f(x)=\eta(\nabla f(x), p)+o(\eta) . \]

Therefore

\[ \Delta(p)=(\nabla f(x), p). \]

Using the Cauchy-Schwarz inequality $-\|x\| \cdot\|y\| \leq( x, y) \leq\|x\| \cdot\|y\|,$ we obtain

\[ -\|\nabla f(x)\| \le (\nabla f(x), p)\le \|\nabla f(x)\| . \]

Let us take

\[ \bar{p}=-\nabla f(x) /\|\nabla f(x)\|. \]

Then

\[ \Delta(\bar{p})=-(\nabla f(x), \nabla f(x)) /\|\nabla f(x)\|=-\|\nabla f(x)\|. \]

The direction $-\nabla f(x)$ (the antigradient) is the direction of the fastest local decrease of the function $f(\cdot)$ at point $x.$ ◻

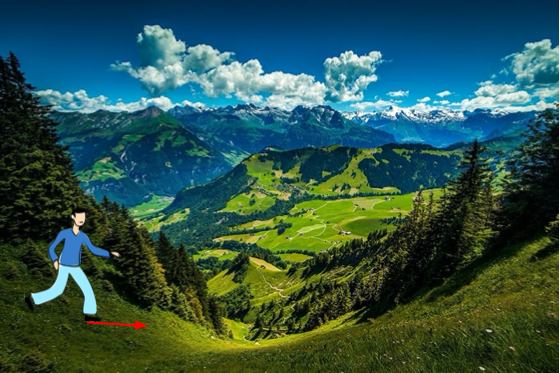

Here is a simple diagram for this property.

Since at each point, $f(x)$ decreases most rapidly along the negative gradient direction, it is then natural to choose the search direction in (18) in the negative gradient direction and the resulting algorithm is the so-called gradient descent method.

Algorithm 1 (Algrihthm)

Given the initial guess $x_0$, learning rate $\eta_t>0$

For t=1,2,$\cdots$,

\[ x_{t+1} = x_{t} - \eta_{t} \nabla f({x}_{t}), \]

In practice, we need a “stopping criterion” that determines when the above gradient descent method to stop. One possibility is

While $S(x_t; f) = \|\nabla f(x_t)\|\le \epsilon$ or $t \ge T$

for some small tolerance $\epsilon>0$ or maximal number of iterations $T$. In general, a good stopping criterion is hard to come by and it is a subject that has called a lot of research in optimization for machine learning.

In the gradient method, the scalar factors for the gradients, $\eta_{t},$ are called the step sizes. Of course, they must be positive. There are many variants of the gradient method, which differ one from another by the step-size strategy. Let us consider the most important examples.

The sequence $\left\{\eta_t\right\}_{t=0}^{\infty}$ is chosen in advance. For example, (constant step)

\[ \eta_t=\frac{\eta}{\sqrt{t+1}}; \]
Full relaxation:

\[ \eta_t=\arg \min _{\eta \geq 0} f\left(x_t-\eta \nabla f\left(x_t\right)\right); \]
The Armijo rule: Find $x_{t+1}=x_t-\eta \nabla f\left(x_t\right)$ with $\eta>0$ such that

\[ \alpha\left(\nabla f\left(x_t\right), x_t-x_{t+1}\right) \leq f\left(x_t\right)-f\left(x_{t+1}\right), \]

\[ \beta\left(\nabla f\left(x_t\right), x_t-x_{t+1}\right) \geq f\left(x_t\right)-f\left(x_{t+1}\right), \]

where $0<\alpha<\beta<1$ are some fixed parameters.

Comparing these strategies, we see that

The first strategy is the simplest one. It is often used in the context of convex optimization. In this framework, the behavior of functions is much more predictable than in the general nonlinear case.
The second strategy is completely theoretical. It is never used in practice since even in one-dimensional case we cannot find the exact minimum in finite time.
The third strategy is used in the majority of practical algorithms. It has the following geometric interpretation. Let us fix $x \in \mathbb{R}^{n}$ assuming that $\nabla f(x) \neq 0$. Consider the following function of one variable:

\[ \phi (\eta)=f(x-\eta \nabla f(x)),\quad \eta\ge0. \]

Then the step-size values acceptable for this strategy belong to the part of the graph of $\phi$ which is located between two linear functions:

\[ \phi_{1}(\eta)=f(x)-\alpha \eta\|\nabla f(x)\|^{2}, \quad \phi_{2}(\eta)=f(x)-\beta \eta\|\nabla f(x)\|^{2} \]

Note that $\phi(0)=\phi_{1}(0)=\phi_{2}(0)$ and $\phi^{\prime}(0)<\phi_{2}^{\prime}(0)<\phi_{1}^{\prime}(0)<0 .$ Therefore, the acceptable values exist unless $\phi(\cdot)$ is not bounded below. There are several very fast one-dimensional procedures for finding a point satisfying the Armijo conditions. However, their detailed description is not important for us now.

Convergence of Gradient Descent method¶

Now we are ready to study the rate of convergence of unconstrained minimization schemes. For the optimization problem (17)

\[ \min_{x\in \mathbb{R}^n} f(x). \]

We assume that $f(x)$ is convex. Then we say that $x^*$ is a minimizer if

\[ f(x^*) = \min_{x \in \mathbb{R}^n} f(x). \]

For minimizer $x^*$, we have

\[ \label{key} \nabla f(x^*) = 0. \]

We have the next two properties of the minimizer for convex functions:

If $f(x) \ge c_0$, for some $c_0 \in \mathbb{R}$, then we have

\[ \mathop{\arg\min} f \neq \emptyset. \]
If $f(x)$ is $\lambda$-strongly convex, then $f(x)$ has a unique minimizer, namely, there exists a unique $x^*\in \mathbb{R}^n$ such that

\[ f(x^*) = \min_{x\in \mathbb{R}^n }f(x). \]

To investigate the convergence of gradient descent method, let us recall the gradient descent method:

Algorithm 2 (Algorithm)

For: $t = 1, 2, \cdots$

\[ \label{equ:fgd-iteration} x_{t+1} = x_{t} - \eta_t \nabla f(x_t), \]

where $\eta_t$ is the stepsize / learning rate.

We have the next theorem about the convergence of gradient descent method under the Assumption.

Theorem

For Gradient Descent Algorithm Algorithm 2 , if $f(x)$ satisfies Assumption, then

\[ \|x_t - x^*\|^2 \le \alpha^t \|x_0 - x^*\|^2 \]

if $0<\eta_t <\frac{2\lambda}{L^2}$ and $\alpha < 1$.

Particularly, if $\eta_t = \frac{\lambda}{L^2}$, then

\[ \|x_t - x^*\|^2 \le \left(1 - \frac{\lambda^2}{L^2}\right)^t \|x_0 - x^*\|^2. \]

Proof

Proof. Note that

\[ x_{t+1} - x = x_{t} - \eta_t \nabla f(x_t) - x. \]

By taking $L^2$ norm for both sides, we get

\[ \|x_{t+1} - x \|^2 = \|x_{t} - \eta_t \nabla f(x_t) - x \|^2. \]

Let $x = x^*$. It holds that

\[\begin{split} \begin{aligned} \|x_{t+1} - x^* \|^2 &= \| x_{t} - \eta_t \nabla f(x_t) - x^* \|^2 \\ &= \|x_t-x^*\|^2 - 2\eta_t \nabla f(x_t)^\top (x_t - x^*) + \eta_t^2 \|\nabla f(x_t) - \nabla f(x^*)\|^2 \qquad \mbox{ (by $\nabla f(x^*)=0$)}\\ &\le \|x_t - x^*\|^2 - 2\eta_t \lambda \|x_t - x^*\|^2 + \eta_t ^2 L^2 \|x_t - x^*\|^2 \quad \mbox{(by $\lambda$- strongly convex and Lipschitz)}\\ &\le (1 - 2\eta_t \lambda + \eta_t^2 L^2) \|x_t - x^*\|^2 =\alpha \|x_t - x^*\|^2, \end{aligned} \end{split}\]

where

\[ \alpha = \left(L^2 (\eta_t -{\lambda\over L^2})^2 + 1-{\lambda^2\over L^2}\right)<1\ \mbox{if } 0< \eta_t<\frac{2\lambda}{L^2}. \]

Particularly, if $\eta_t =\frac{\lambda}{L^2}$,

\[ \alpha=1-{\lambda^2\over L^2}, \]

which finishes the proof. ◻

This means that if the learning rate is chosen appropriatly, $\{x_t\}_{t=1}^\infty$ from the gradient descent method will converge to the minimizer $x^*$ of the function.

There are some issues on Gradient Descent method:

$\nabla f(x_{t})$ is very expensive to compute.
Gradient Descent method does not yield generalization accuracy.

The stochastic gradient descent (SGD) method in the next section will focus on these two issues.
